NOU

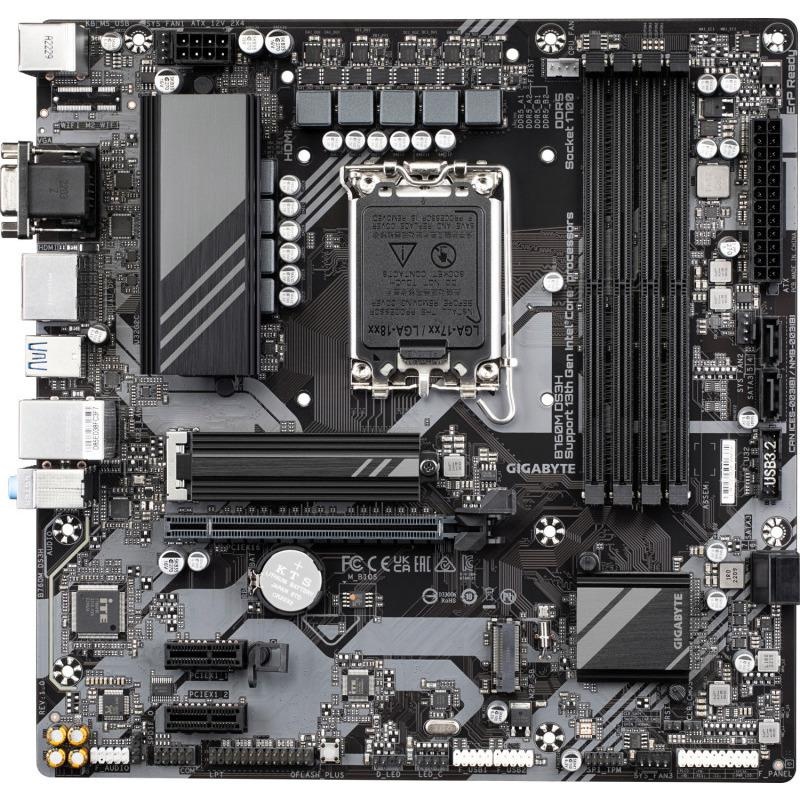

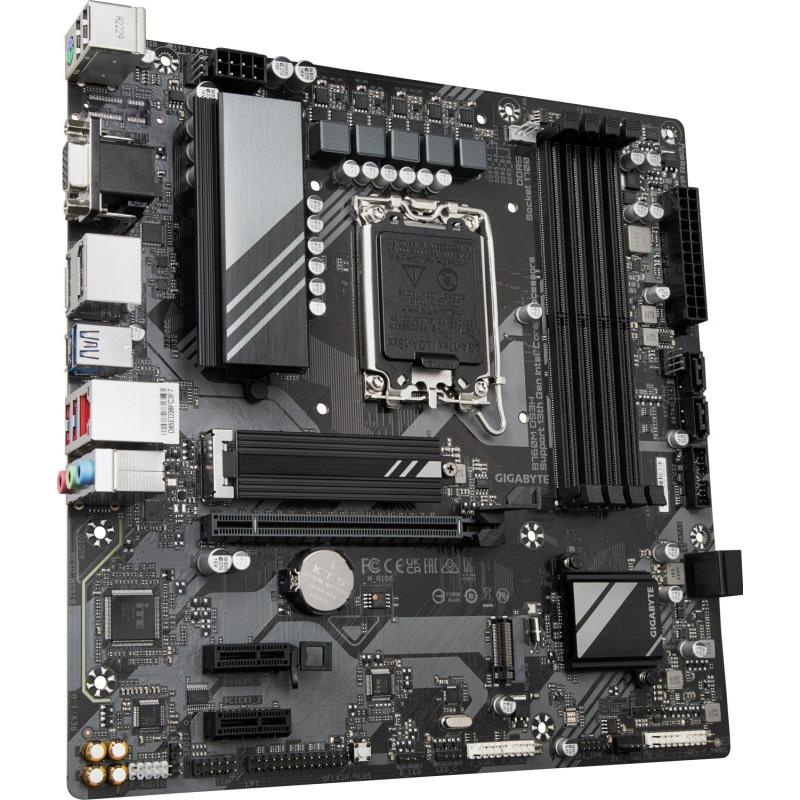

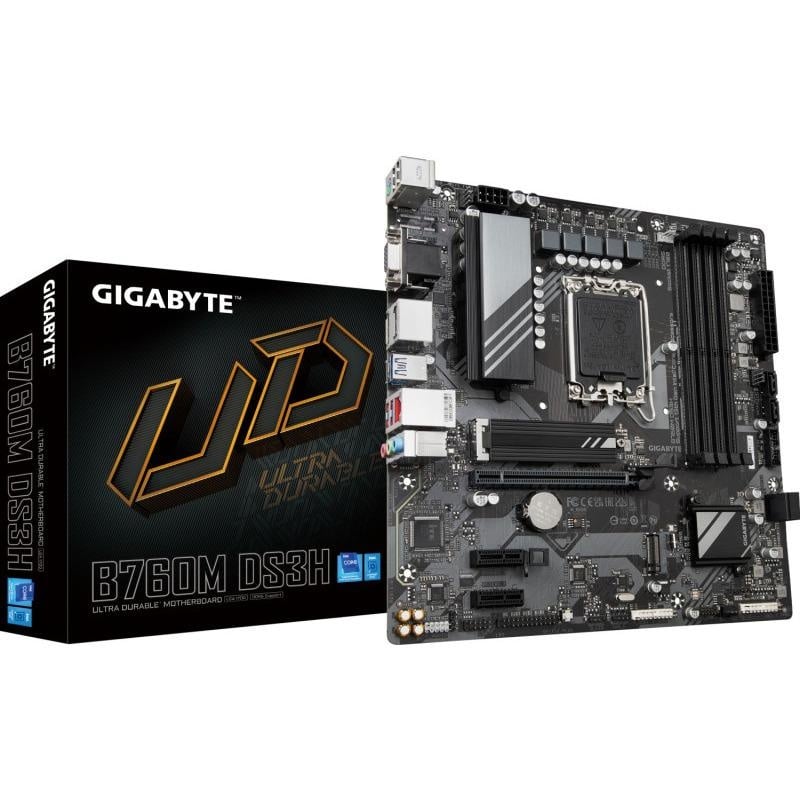

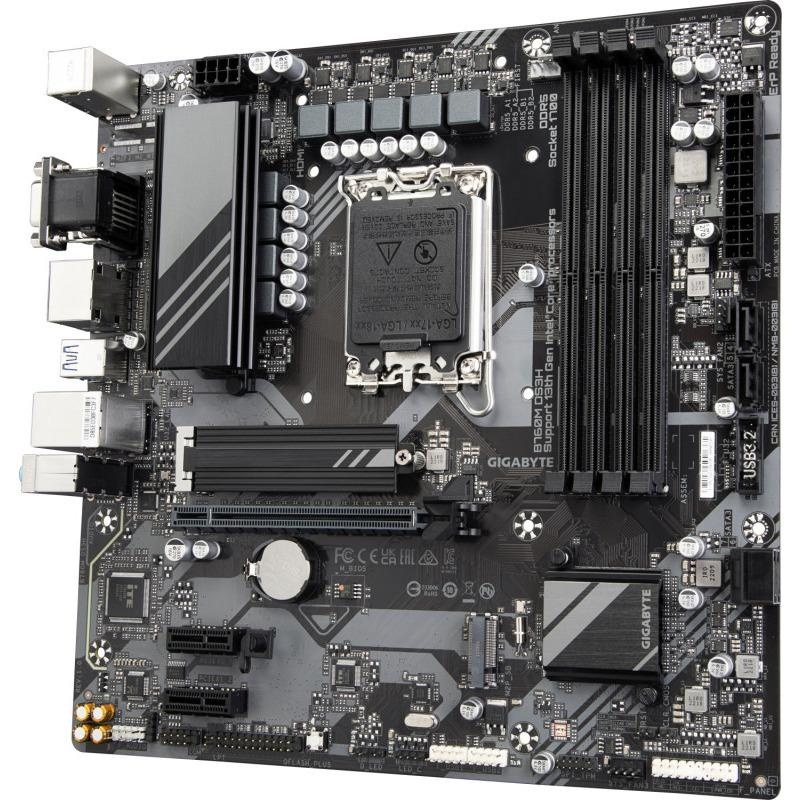

MB GIGABYTE B760M DS3H LGA1700 DDR5
650,99 RON
(TVA inclus)
538,01 RON
(fara TVA)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza GIGABYTE B760M DS3H DDR5 (rev. 1.0) LGA1700, 4x DDR5, 1x PCIE 4.0 x16, 2x PCIE 3.0 x1, 2x M.2, 1x D-sub 1x HDMI 2x DP, 4x SATA 6GB/s, mATX
Detalii
SKU
B760M DS3H
Categorii
Brand
Product colour
Brown
Ethernet LAN
Yes
DisplayPort version
1.2
Wi-Fi
No
DisplayPorts quantity
2
Processor manufacturer
Intel
Ethernet LAN (RJ-45) ports
1
USB connector type
USB Type-A, USB Type-C
Warranty period
3 year(s)
Audio output channels
7.1 channels
HDCP
Yes
Windows operating systems supported
Windows 10 x64, Windows 11 x64
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
DVI-D ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 2.0 ports quantity
2
PCI Express x16 slots
1
PCI Express x1 slots
2
Memory channels
Dual-channel
Maximum internal memory
192 GB
Motherboard chipset
Intel B760 Express
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Number of SATA III connectors
4
Number of storage drives supported
6
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Memory slots type
DIMM
Headphone outputs
3
VGA (D-Sub) ports quantity
1
Microphone in
Yes
Component for
PC
DirectX version
12.0
Maximum resolution
4096 x 2304 pixels
Parallel processing technology support
Not supported
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 2.0 connectors
2
Number of memory slots
4
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
ECC & Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID support
Yes
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
PCI-Ex1
2
RAM-Slots
4
MB-Socket
1700
PCI-Ex16
1
MB-Format
micro-ATX
USB3
4-8
Onboard-CPU
No
PCI
0
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Front panel connector
Yes
TPM connector
Yes
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Number of HDDs supported
4
Serial port headers
1
PS/2 ports quantity
1
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
S/PDIF out connector
Yes
Maximum internal memory supported by processor
192 GB
Parallel connector
Yes
