NOU
MB Gigabyte B650I AX AM5
867,99 RON
(TVA inclus)
717,35 RON
(fara TVA)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

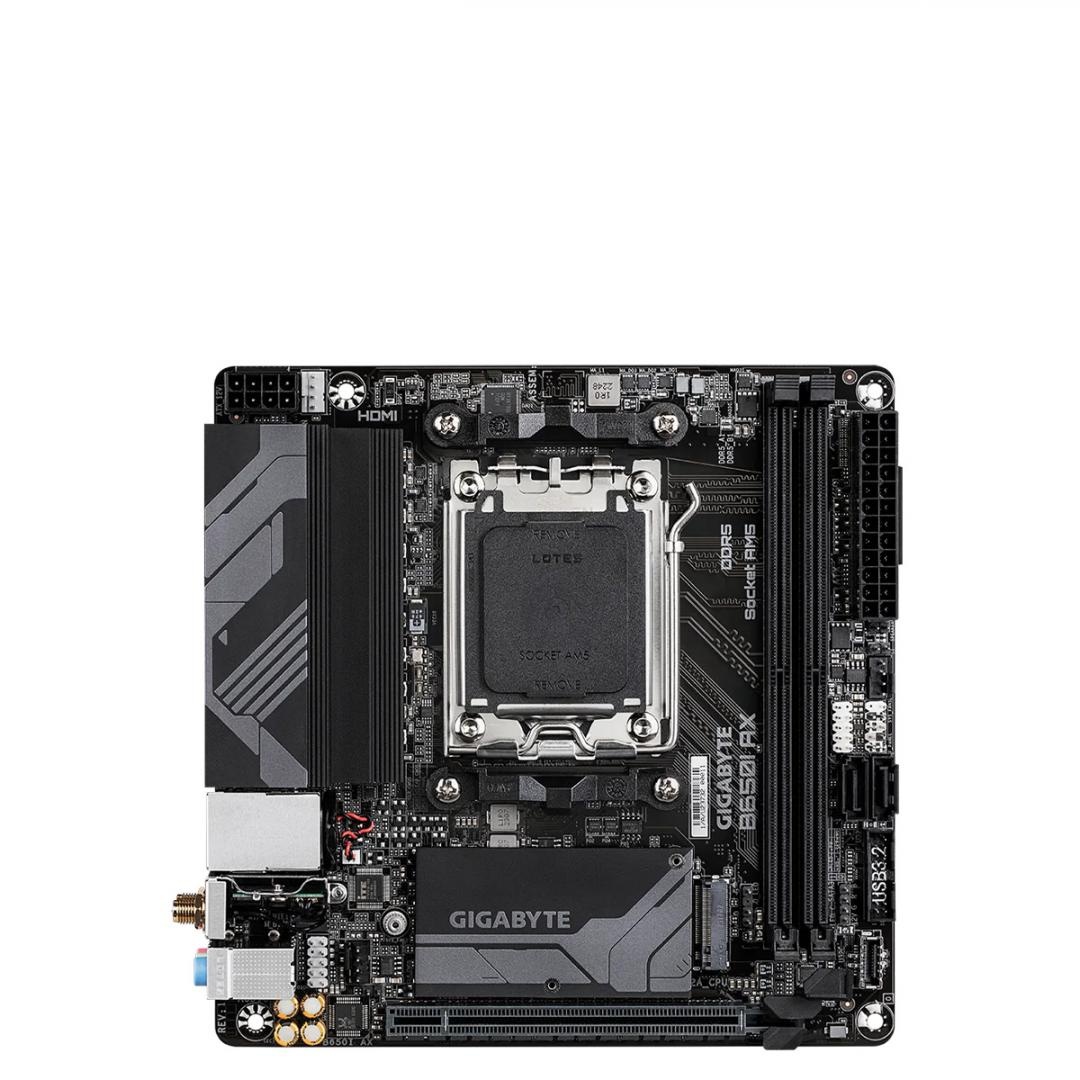

Placa de baza GIGABYTE B650I AX AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE x16, 1x M.2, 2x SATA 6gb/s, Mini-ITX
Detalii
SKU
B650I AX
Categorii
Brand
Product colour
Brown
Ethernet LAN
Yes
DisplayPort version
1.4
Wi-Fi
Yes
DisplayPorts quantity
1
Processor manufacturer
AMD
Bluetooth version
5.3
Ethernet LAN (RJ-45) ports
1
Warranty period
3 year(s)
Audio output channels
7.1 channels
HDCP
Yes
Windows operating systems supported
Windows 10 x64, Windows 11 x64
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Batteries included
Yes
DVI-D ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 2.0 ports quantity
3
Memory channels
Dual-channel
Maximum internal memory
128 GB
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
LAN controller
Realtek RTL8125
WLAN controller model
Realtek RTL8852CE
Motherboard chipset
AMD B650
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Number of SATA III connectors
2
Number of storage drives supported
3
Number of battery cells
1
PCI Express x16 (Gen 4.x) slots
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Memory slots type
DIMM
Line-in
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Microphone in
Yes
Component for
PC
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Number of M.2 (M) slots
1
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
Motherboard chipset family
AMD
Motherboard form factor
mini ITX
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 2.0 connectors
1
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of RGB LED pin headers
2
Number of memory slots
2
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
Screws included
Yes
Antenna included
Yes
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
RAID support
Yes
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1
Onboard-CPU
No
PCI
0
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage
Power source type
ATX
Front panel connector
Yes
Maximum internal memory per slot
64 GB
Supported memory clock speed (max)
6400 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
Number of HDDs supported
2
Discrete graphics support
Yes
Chassis intrusion connector
Yes
Number of EATX power connectors
1
Bluetooth
Yes
